Product Dimensions 4.75"h x 30"w x 20"d

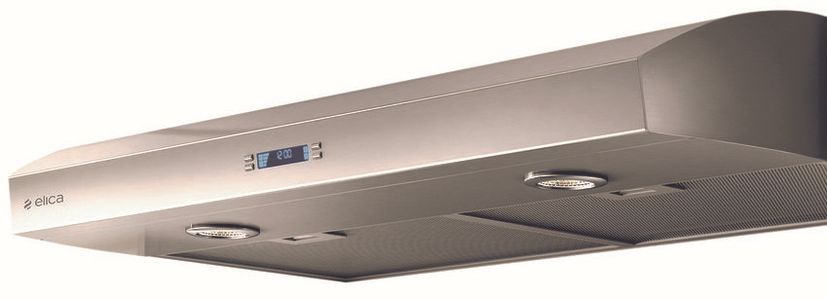

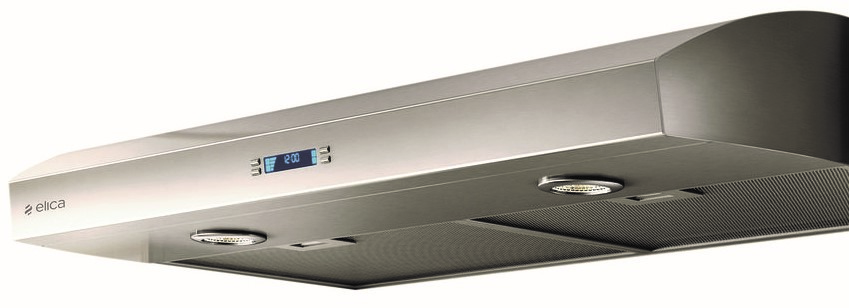

Its upgraded 4-speed, 400 CFM internal blower provides sufficient ventilating power for most kitchens. Bellagio also offers the luxury and convenience of LED lighting with 2 intensities, dishwasher-safe anodized aluminum mesh filters and multi-function LCD controls.Read More
Its upgraded 4-speed, 400 CFM internal blower provides sufficient ventilating power for most kitchens. Bellagio also offers the luxury and convenience of LED lighting with 2 intensities, dishwasher-safe anodized aluminum mesh filters and multi-function LCD controls. Available in 30" or 36" width, Bellagio is designed for standard ducted installation and can also be used as a recirculating system using the kit available as an accessory.
With a compact 4 3/4" height, Bellagio is an ideal choice where under-cabinet space is limited.
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 4.75 |
| Duct Size (in.) | 3 1/4” x 10” with Back Draft Damper (top or rear), or 7” Round (top) |
| Depth (in.) | 20 |
| Collection | Bellagio |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 2 Year Parts & Labour |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 430 |
| Grease Filter Type | Aluminum Mesh |
| Bulb Type | LED |
| Sones Rating | 1.4 - 7.1 |
| Fan Speed Options | 4 |
| Width (cm) | 76.2 |
| Height (cm.) | 12.07 |
| Depth (cm.) | 50.8 |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Additional Attributes: | |
Specifications: | |
| Blower Type (internal) | 400 CFM, 4-Speed Internal |
| Speed 1 | 160 CFM |
| Speed 2 | 240 CFM |
| Speed 3 | 310 CFM |
| Speed 4 | 430 CFM |
| Controls | Multi-function electronic with LCD display |
| Illumination | 2 LED Lights |
| Filter Type | 2, Dishwasher-Safe, Anodized Aluminum Mesh |
| Installation Type | Ducted or Recirculating Installation (Recirculating Kit Sold Separately) |
| Duct Transition | 3 1/4” x 10” with Back Draft Damper (top or rear), or 7” Round (top) sold separately |
Kits: | |
| Optional Recirculating Kit | KIT02178 |
| Optional Stainless Steel Mesh Grease Filter | GRI0131086A |
| Optional Backdraft Damper, 7” Round | KIT02723 |
Consumable Parts: | |
| Replacement Grease Filter (1) | GF04BA |
| Replacement Carbon Filter (1) | TM01FA |
| Replacement Light Bulb (1) | 2006BH |
