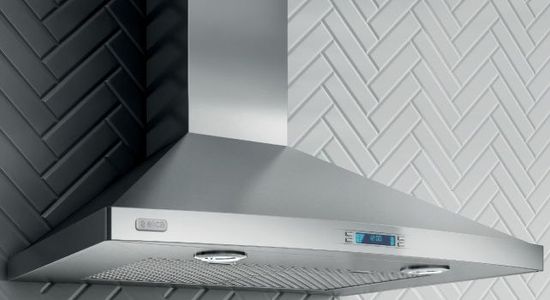

Elica Techne Series Pilato 30" Stainless Steel Wall Mounted Range Hood

Model #: EPL630S1
583019
Elica
At a Glance
The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement. Available in 30”or 36” widths, Pilato features include a powerful 600 CFM blower, halogen lighting with 2 light intensities, dishwashersafe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety. Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
$1,039.00Save $NaN
$1,039.00

Get to know this product.

The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement. Available in 30”or 36” widths, Pilato features include a powerful 600 CFM blower, halogen lighting with 2 light intensities, dishwashersafe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety. Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
Useful Documents
Spec Sheet
Use & Care and Installation Guide
Specifications

Overview

Noise (sones)Min: 2.03, Max: 8
Duct TransitionTop Round 6”
Installation TypeDucted or Recirculating with Recirculating Kit (sold separately)
Product MaterialStainless Steel
Ship Dimensions16.10'' x 26.37'' x 33.03''

Misc. Specs

Width (in.)29.718
Height (in.)10.1556
Duct Size (in.)6
Depth (in.)21.2979
CollectionTechne Series Pilato
Appliance ColorStainless Steel
Manufacturer Warranty2 Year
Color Finish NameStainless Steel
Commercial Use ApprovedNo
Range Hood TypeUnder Cabinet
ADA CompliantNo
ENERGY STAR QualifiedNo
RetractableNo
Outdoor ApprovedNo
Appliance Fit Width (in.)30
Smart CompatibleNo
Wifi CapableNo
Maximum CFM600
Ductless CapableNo
Grease Filter TypeAluminum Mesh
Width (cm)76.2
Height (cm)26.04
Depth (cm)54.61
Voltage120
Amp3.7
Frequency60
